Netstat
Netstat is a useful tool for checking network and Internet connections. Some useful applications for the average PC user are considered, including checking for malware connections.


Syntax and switches

The command syntax is netstat [-a] [-b] [-e] [-f] [-n] [-o] [-p proto] [-r] [-s] [-t] [-v] [interval] A brief description of the switches is given in Table I below. Some switches are only in certain Windows versions, as noted in the table..Note that switches for Netstat use the dash symbol "-" rather than the slash "/".

Table I. Switches for Netstat command
Switch Description
-a Displays all connections and listening ports
-b Displays the executable involved in creating each connection or listening port. (Added in XP SP2.)
-e Displays Ethernet statistics
-f Displays Fully Qualified Domain Names for foreign addresses. (In Windows Vista/7 only)
-n Displays addresses and port numbers in numerical form
-o Displays the owning process ID associated with each connection
-p proto Shows connections for the protocol specified by proto; proto may be any of: TCP, UDP, TCPv6, or UDPv6.
-r Displays the routing table
-s Displays per-protocol statistics
-t Displays the current connection offload state, (Windows Vista/7)
-v When used in conjunction with -b, will display sequence of components involved in creating the connection or listening port for all executables. (Windows XP SP2, SP3)
[interval] An integer used to display results multiple times with specified number of seconds between displays. Continues until stopped by command ctrl+c. Default setting is to display once,

Applications of Netstat

Netstat is one of a number of command-line tools available to check the functioning of a network. (See this page for discussion of other tools.) It provides a way to check if various aspects of TCP/IP are working and what connections are present. In Windows XP SP2, a new switch "-B" was added that allows the actual executable file that has opened a connection to be displayed. This newer capability provides a chance to catch malware that may be phoning home or using your computer in unwanted ways on the Internet. There are various ways that a system administrator might use the assortment of switches but I will give two examples that might be useful to home PC users.

Checking TCP/IP connections

TCP and UDP connections and their IP and port addresses can be seen by entering a command combining two switches: netstat -an An example of the output that is obtained is shown in Figure 1.

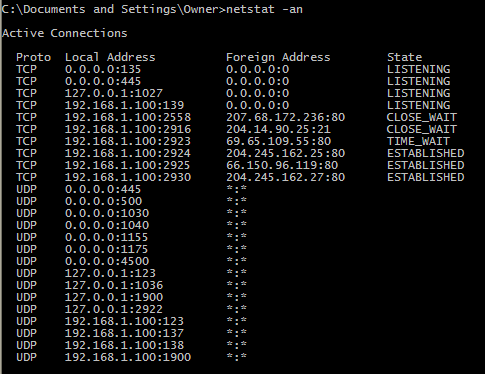

Figure 1. Example output for command "netstat -an"
Output for sample netstat command

The information that is displayed includes the protocol, the local address, the remote (foreign) address, and the connection state. Note that the various IP addresses include port information as well. An explanation of the different connection states is given in Table II>

Table II. Description of various connection states
State Description
CLOSED Indicates that the server has received an ACK signal from the client and the connection is closed
CLOSE_WAIT Indicates that the server has received the first FIN signal from the client and the connection is in the process of being closed
ESTABLISHED Indicates that the server received the SYN signal from the client and the session is established
FIN_WAIT_1 Indicates that the connection is still active but not currently being used
FIN_WAIT_2 Indicates that the client just received acknowledgment of the first FIN signal from the server
LAST_ACK Indicates that the server is in the process of sending its own FIN signal
LISTENING Indicates that the server is ready to accept a connection
SYN_RECEIVED Indicates that the server just received a SYN signal from the client
SYN_SEND Indicates that this particular connection is open and active
TIME_WAIT Indicates that the client recognizes the connection as still active but not currently being used

Checking for malware by looking at which programs initiate connections

To find out which programs are making connections with the outside world, we can use the command netstat -b (Note that for Windows Vista/7, this particular switch requires that the command prompt have elevated privileges.) Actually, it is better to check over a period of time and we can add a number that sets the command to run at fixed intervals. Also, it is best to create a written record of the connections that are made over some period of time. The command can then be written netstat -b 5 >> C:\connections.txt Note that as written, this command will run with five-second intervals until stopped by entering "Ctrl+c", which is a general command to exit. (Some reports say that this can be fairly CPU intensive so it may cause a slower, single-core machine to run sluggishly. It was not noticeable on my dual-core machine.) A simple example of the type of output is shown in Figure 2. Note that the Process ID (PID) is given when using Windows XP. In Windows Vista/7, the switch "o' has to be added to display PIDs. This command can be combined with other tools such as Task Manager to analyze what executable files and processes are active and are trying to make Internet connections.

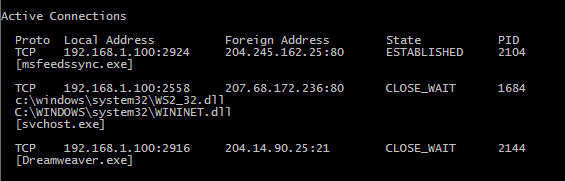

Figure 2. Sample output for command "netstat -b" in Windows XP

Windows XP batch program to check connections and terminate automatically

The previous example of using "netstat -b" to check connections at intervals has the disadvantage that it requires manual termination. It is also possible to use a batch file that runs a specified number of times with a given time interval and then terminates automatically. In Windows XP we can make use of a command from the Windows 2003 Server Tools called "Sleep". A possible batch file is: @echo off
echo Checking connections
for /L %%X in (1,1,100) do (netstat -b >> C:\connections.txt)&&(sleep 5)
This particular example does 100 iterations of the netstat command at 30 second intervals and writes the results to a file C:\connections.txt. By using different combinations of the switches in Table I, the type of output can be varied

Batch program to check connections in Windows Vista and Windows 7

Windows Vista and Windows 7 do not require installing the "Sleep" file. A command " timeout" has been added to these operating systems that serves a similar purpose. A possible batch file for Windows Vista/7 is:

@echo off
echo Checking connections
for /L %%X in (1,1,100) do (netstat -b >> "%USERPROFILE%\connections.txt")&&
((timeout /t 5 /nobreak)>nul)

This batch file has to be run with administrator privileges.
